As-Built 2D CAD Documentation
As-Built 2D CAD Documentation for Engineering & Inspection
Using 3D laser scanning, we capture highly accurate point cloud data that serves as the basis for producing as-built 2D CAD documentation. Compared with conventional measurement and survey methods, 3D laser scanning provides a much higher level of accuracy, detail, and coverage while reducing the risk of missing critical dimensions or relying on incomplete manual measurements. This makes as-built 2D CAD documentation a reliable deliverable for projects that require precise representation of existing conditions.
Our as-built 2D CAD documentation is tailored to each client’s specific requirements in terms of format, scope, and Level of Development (LOD). Depending on the project, we can produce as-built engineering drawings for reverse engineering, as-built architectural drawings for BIM-related workflows, floor plans, sections, elevations, topographic drawings, and as-built piping isometric drawings for industrial plants. Because these deliverables are developed from highly accurate 3D laser scan data, the final drawings reflect actual field conditions rather than outdated design information or limited manual measurements.
As-built 2D CAD documentation is also highly valuable for inspection and quality control applications. We produce documentation to support laser tracker alignment & inspection, storage tank inspection & calibration, volume surveys, construction verification, deformation & wear analysis, topographic mapping & georeferencing, GPR (underground mapping), propeller inspection, and LIBS, XRF, & ultrasonic thickness analysis. In these applications, clear and accurate drawings help translate complex 3D laser scan and dimensional measurement data into practical documentation that can be reviewed, referenced, and used efficiently by project teams.
By combining high-accuracy 3D laser scanning with refined processing and drafting workflows, we deliver as-built 2D CAD documentation that is accurate, consistent, and tailored to the technical requirements of each project. The result is high-quality documentation that supports decision-making, improves coordination, reduces rework, and provides a dependable basis for further design, analysis, inspection, and maintenance activities.
Our Equipment
Equipment We Use for As-Built 2D CAD Documentation
TERRESTRIAL 3D LASER SCANNER
With a range of 0.5-130 m and a 3D accuracy of 1.9 mm @ 10 m, the Leica RTC360 captures high-accuracy terrestrial 3D laser scans of medium to large assets.
TERRESTRIAL 3D LASER SCANNER
With a range of 0.6-60 m and a 3D accuracy of 4 mm @ 10 m, the Leica BLK360 is ideal for 3D laser scanning in tight, space-constrained areas on small to medium assets.
HANDHELD 3D LASER SCANNER
With a 3D accuracy up to 0.02 mm, the FreeScan UE Pro is a metrology-grade handheld 3D laser scanner for high-detail 3D laser scanning of small to medium objects.
MEASURING ARM CMM
With a 3D accuracy up to 0.013 mm for the AS1 3D laser scanner, the Absolute Arm 7-Axis combines probing and 3D laser scanning for precision measurement of small to medium objects.
LASER TRACKER CMM
With a range of 0.8-160 m and a probing accuracy up to 0.015 mm, the AT500 is used to probe small to large objects for precision inspection, alignment, and verification.
TOTAL STATION
With an angular accuracy of 1″, a distance accuracy up to 1 mm, and a range of 0.9-3,500 m, the TS10 establishes survey control that enables the most accurate terrestrial 3D laser scan registration possible.
RTK GNSS ROVER
With an accuracy up to 8 mm and tilt compensation, the GS18 T quickly georeferences data into your required coordinate system for consistent field-to-office alignment.
GROUND PENETRATING RADAR (GPR)
With an ultra-wideband 250 MHz GPR antenna and a depth penetration up to 8 m, the LMX200 maps buried utilities, including metallic and non-metallic pipes, for confident subsurface awareness.
CABLE & PIPE LOCATOR
With a depth measurement accuracy of ±3%, a locate accuracy of ±5%, and a depth readout up to 30 m, the RD8200 pinpoints underground cables and pipes with high confidence.
HANDHELD LIBS ANALYZER
Using a handheld LIBS analyzer, the Niton Apollo detects C, Al, Si, Ti, V, Cr, Mn, Co, Ni, Cu, Nb, Mo, and W on-site to differentiate steel grades beyond XRF.
HANDHELD XRF ANALYZER
Using a handheld XRF analyzer, the Niton XL5 Plus identifies and quantifies elements from Mg to U on-site for rapid alloy identification and PMI.
ULTRASONIC THICKNESS GAUGE
With a thickness range of 0.08-635 mm and multilayer capability to measure up to four individual layers, the 39DL PLUS delivers reliable ultrasonic thickness measurements.
Common Applications
Where As-Built 2D CAD Documentation Delivers Value
As-Built Deliverables
Level of Development / Detail (LOD)

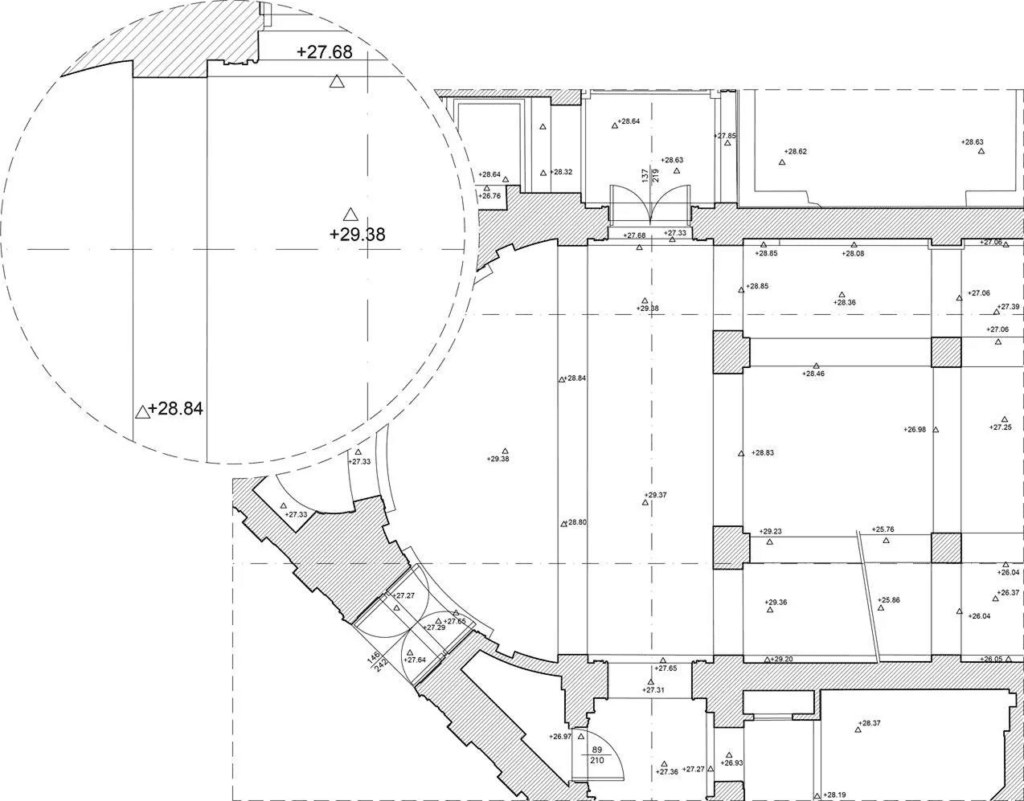

LOD 100: Basic Hole in Wall

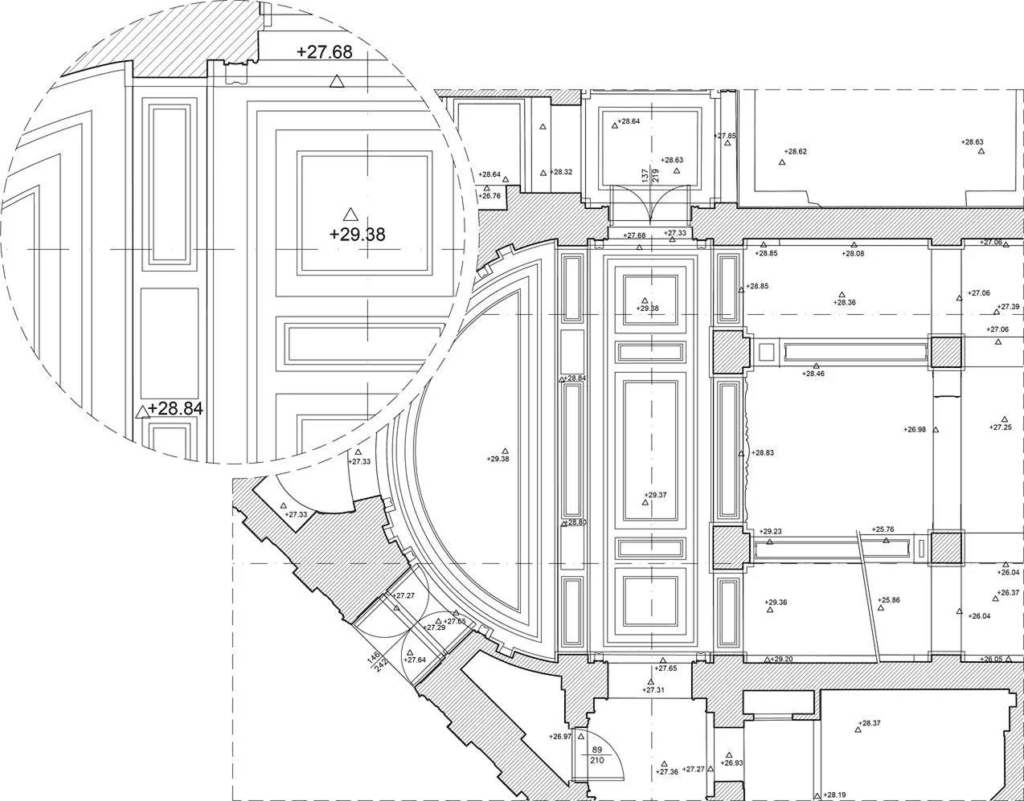

LOD 300: Contextual Drawing

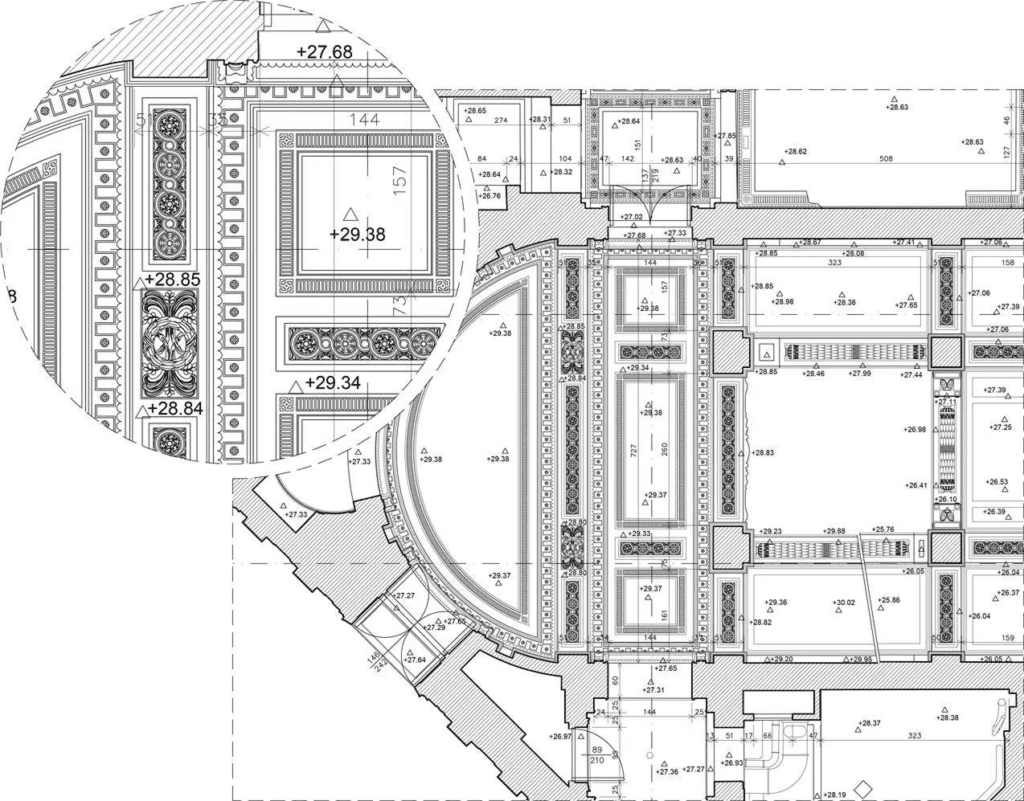

LOD 500: Full Detail Drawings
As-Built Modeling
Scan To CAD - From Accurate Point Cloud to Precise 3D CAD Models
