Storage Tank Inspection & Calibration
High-Precision Storage Tank Inspection & Calibration
With 3D laser scanning, storage tank inspections and calibrations can be performed with unparalleled accuracy and efficiency, significantly reducing errors, downtime, and costs compared to conventional methods. By capturing millions of data points per second, 3D laser scanners ensure that even the smallest details of a storage tank are accurately captured and represented in a highly accurate and detailed point cloud.

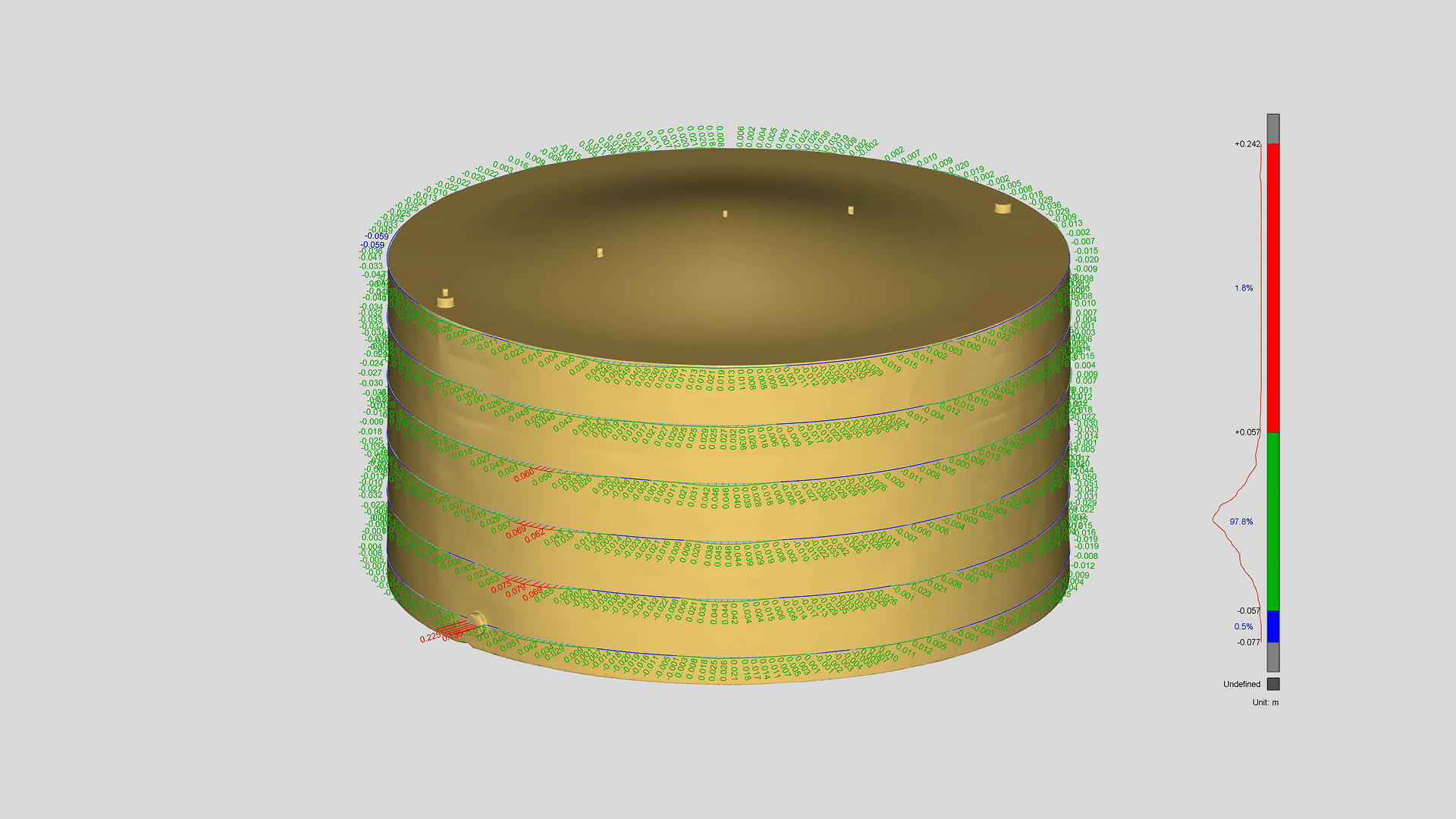

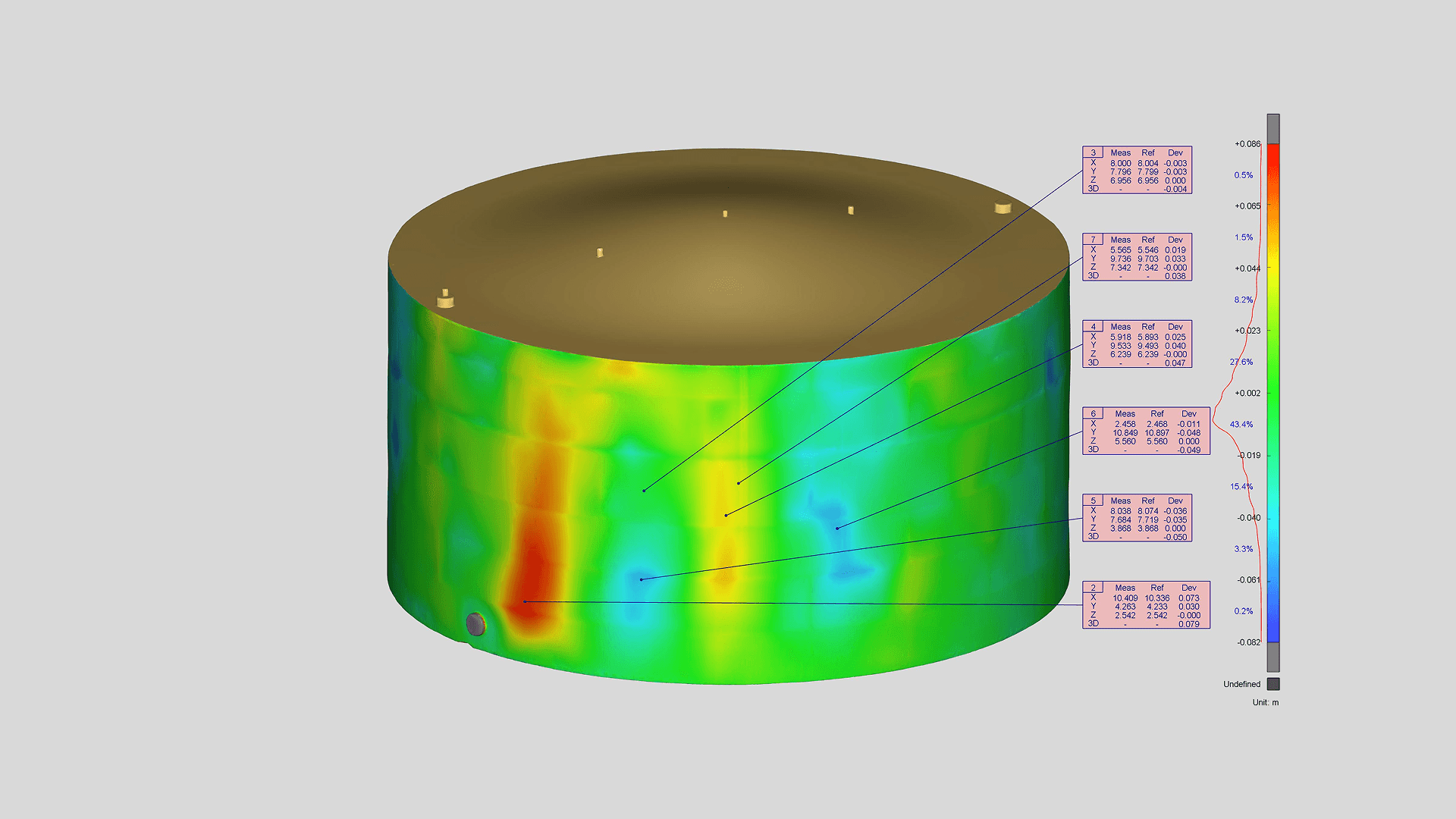

Using specialized software for storage tank inspection, we process the point cloud data obtained from 3D laser scanning to generate a comprehensive storage tank inspection report. This report includes essential analyses such as a tank volume table, best cylinder, tank unroll, color map, differential settlement, localized settlement, roundness, and verticality assessments.
Our 3D laser scanning workflow accommodates a wide range of storage tank sizes, shapes, and types, including both aboveground and underground storage tanks, providing a flexible and reliable solution for inspection and calibration needs. Beyond storage tank inspections and calibrations, we also offer a comprehensive suite of services, including the creation of 3D mesh models, 2D and 3D CAD models, BIM models, plant design models, construction verification, deformation and wear analysis, topographic mapping & georeferencing, GPR (underground mapping), and XRF and thickness analysis. These services extend to both storage tanks and their surrounding environments, supporting inspection, maintenance, and the installation of equipment.
Our Equipment
Equipment We Use for Storage Tank Inspection & Calibration
TERRESTRIAL 3D LASER SCANNER
With a range of 0.5-130 m and a 3D accuracy of 1.9 mm @ 10 m, the Leica RTC360 captures high-accuracy terrestrial 3D laser scans of medium to large assets.
TERRESTRIAL 3D LASER SCANNER
With a range of 0.6-60 m and a 3D accuracy of 4 mm @ 10 m, the Leica BLK360 is ideal for 3D laser scanning in tight, space-constrained areas on small to medium assets.
HANDHELD 3D LASER SCANNER
With a 3D accuracy up to 0.02 mm, the FreeScan UE Pro is a metrology-grade handheld 3D laser scanner for high-detail 3D laser scanning of small to medium objects.
MEASURING ARM CMM
With a 3D accuracy up to 0.013 mm for the AS1 3D laser scanner, the Absolute Arm 7-Axis combines probing and 3D laser scanning for precision measurement of small to medium objects.
LASER TRACKER CMM
With a range of 0.8-160 m and a probing accuracy up to 0.015 mm, the AT500 is used to probe small to large objects for precision inspection, alignment, and verification.
TOTAL STATION
With an angular accuracy of 1″, a distance accuracy up to 1 mm, and a range of 0.9-3,500 m, the TS10 establishes survey control that enables the most accurate terrestrial 3D laser scan registration possible.
RTK GNSS ROVER
With an accuracy up to 8 mm and tilt compensation, the GS18 T quickly georeferences data into your required coordinate system for consistent field-to-office alignment.
GROUND PENETRATING RADAR (GPR)
With an ultra-wideband 250 MHz GPR antenna and a depth penetration up to 8 m, the LMX200 maps buried utilities, including metallic and non-metallic pipes, for confident subsurface awareness.
CABLE & PIPE LOCATOR
With a depth measurement accuracy of ±3%, a locate accuracy of ±5%, and a depth readout up to 30 m, the RD8200 pinpoints underground cables and pipes with high confidence.
HANDHELD LIBS ANALYZER
Using a handheld LIBS analyzer, the Niton Apollo detects C, Al, Si, Ti, V, Cr, Mn, Co, Ni, Cu, Nb, Mo, and W on-site to differentiate steel grades beyond XRF.
HANDHELD XRF ANALYZER
Using a handheld XRF analyzer, the Niton XL5 Plus identifies and quantifies elements from Mg to U on-site for rapid alloy identification and PMI.
ULTRASONIC THICKNESS GAUGE
With a thickness range of 0.08-635 mm and multilayer capability to measure up to four individual layers, the 39DL PLUS delivers reliable ultrasonic thickness measurements.
Common Applications
Where Storage Tank Inspection & Calibration Deliver Value
As-Built Deliverables
Sample Inspection Reports
Aboveground Storage Tank
Storage Tank Inspection Report
- Volume from Elevation
- Best Cylinder Plumbness
- Color Map
- Unroll
- Differential Settlement
- Localized Settlemenet
- Roundness
- Verticality
- Volume from Elevation
- Best Cylinder Plumbness
- Color Map
- Unroll
- Differential Settlement
- Localized Settlement
- Roundness
- Verticality
Underground Storage Tank
Storage Tank Inspection Report
- Volume from Elevation
- Best Cylinder Plumbness
- Color Map
- Unroll
- Roundness
- Verticality
- Volume from Elevation
- Best Cylinder Plumbness
- Color Map
- Unroll
- Roundness
- Verticality
